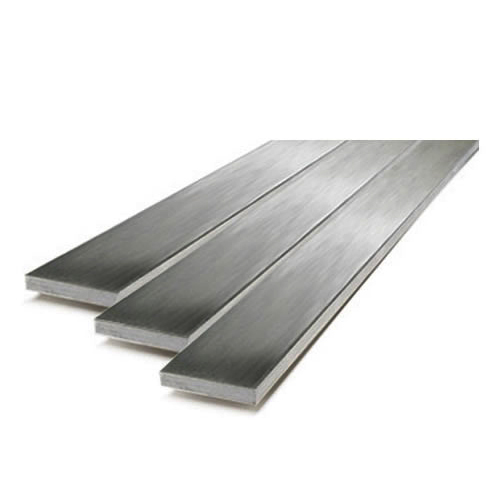

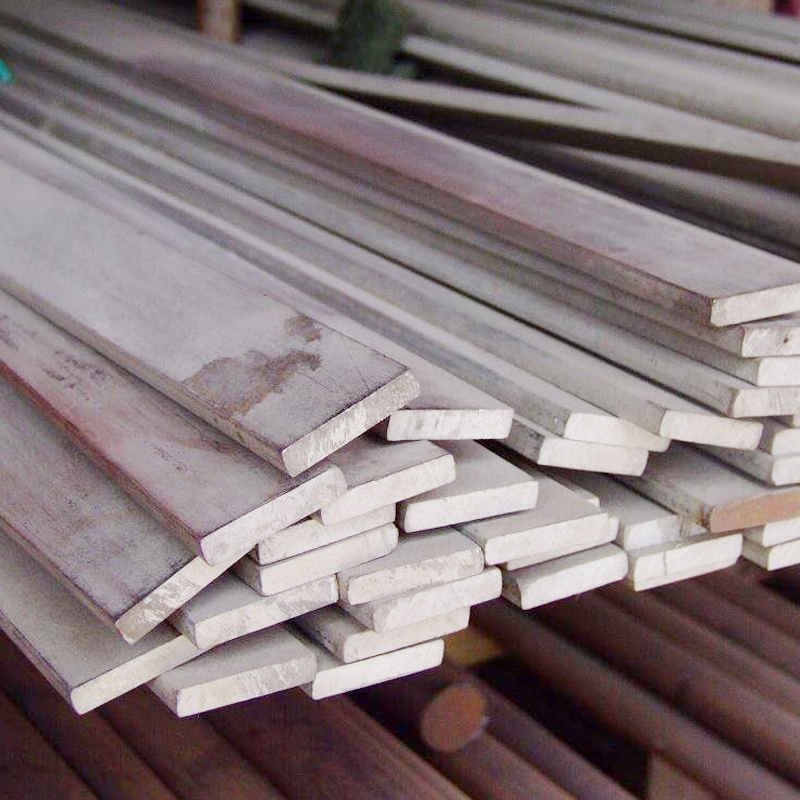

Flat Bars
$150.00
SKU :
JB-03
Brand :
ThemeKalia
MS Flats are generally used in Industrial gratings, various fabrication works & domestically, it is used in grills outside window. Representation of M.S. Flats is done by the Width (W)b> & the Thickness (T) of the Flat. For example: When we say 25 X 5 FLAT, it means Width = 25mm & Thickness = 5mm.
Following are the various sizes of HR Sheets in terms of Thickness:-
As per British Standards thickness used to be represented by Gauge (G).
| Size (mm) | Weight (kg/ft) | Weight (Kg/mtr) |
|---|---|---|
| 12 x 3 | 0.086 | 0.282 |
| 12 x 5 | 0.143 | 0.470 |
| 18 x 4 | 0.180 | 0.585 |
| 20 x 3 | 0.143 | 0.470 |
| 20 x 5 | 0.241 | 0.790 |
| 20 x 6 | 0.287 | 0.942 |
| 25 x 3 | 0.183 | 0.600 |
| 25 x 5 | 0.305 | 1.000 |
| 25 x 6 | 0.365 | 1.197 |
| 25 x 8 | 0.470 | 1.550 |
| 25 x 10 | 0.609 | 1.998 |
| 25 x 12 | 0.731 | 2.398 |
| 32 x 3 | 0.243 | 0.798 |
| 32 x 5 | 0.395 | 1.296 |
| 32 x 6 | 0.457 | 0.457 |
| 32 x 8 | 0.671 | 2.202 |
| 32 x 10 | 0.854 | 2.802 |
| 32 x 12 | 1.005 | 3.297 |
| 32 x 16 | 1.342 | 4.403 |
| 40 x 3 | 0.274 | 0.899 |
| 40 x 5 | 0.487 | 1.598 |
| 40 x 6 | 0.580 | 1.903 |
| 40 x 8 | 0.762 | 2.500 |
| 40 x 10 | 0.945 | 3.100 |
| 40 x 12 | 1.158 | 3.799 |
| 40 x 16 | 1.523 | 4.997 |
| 40 x 20 | 1.920 | 6.300 |
| 40 x 25 | 2.407 | 7.897 |
| 40 x 32 | 2.897 | 9.505 |
| 50 x 3 | 0.365 | 1.197 |
| 50 x 5 | 0.609 | 1.998 |
| 50 x 6 | 0.731 | 2.398 |
| 50 x 8 | 0.944 | 3.097 |
| 50 x 10 | 1.188 | 3.898 |
| 50 x 12 | 1.432 | 4.698 |
| 50 x 16 | 1.920 | 6.300 |
| 50 x 20 | 2.377 | 7.799 |
| 50 x 25 | 2.986 | 9.797 |
| 50 x 40 | 4.754 | 15.598 |
| 63 x 6 | 0.915 | 3.002 |
| 63 x 8 | 1.219 | 4.000 |
| 63 x 10 | 1.500 | 4.922 |
| 63 x 12 | 1.798 | 5.899 |
| 63 x 16 | 2.407 | 7.897 |
| 63 x 20 | 3.017 | 9.899 |
| 63 x 25 | 3.779 | 12.399 |
| 63 x 32 | 4.815 | 15.798 |
| 63 x 40 | 6.034 | 19.798 |
| 75 x 6 | 1.066 | 3.498 |
| 75 x 8 | 1.432 | 4.698 |
| 75 x 10 | 1.798 | 5.899 |
| 75 x 12 | 2.163 | 7.097 |
| 75 x 16 | 2.864 | 9.397 |
| 75 x 20 | 3.596 | 11.798 |
| 75 x 25 | 4.480 | 14.699 |
| 75 x 40 | 7.200 | 23.600 |
| 100 x 6 | 1.432 | 4.698 |
| 100 x 8 | 1.920 | 6.300 |
| 100 x 10 | 2.377 | 7.798 |
| 100 x 12 | 2.864 | 9.397 |
| 100 x 16 | 3.840 | 12.599 |
| 100 x 20 | 4.785 | 15.700 |
| 100 x 25 | 5.973 | 19.599 |
| 100 x 32 | 7.650 | 25.099 |
| 100 x 40 | 9.500 | 31.170 |
| 125 x 6 | 1.800 | 5.900 |
| 125 x 8 | 2.400 | 7.900 |
| 125 x 10 | 2.986 | 9.797 |
| 125 x 12 | 3.596 | 11.798 |
| 125 x 16 | 4.800 | 15.750 |
| 125 x 20 | 5.973 | 19.597 |
| 125 x 25 | 7.500 | 24.600 |
| 125 x 32 | 9.570 | 31.399 |
| 150 x 6 | 2.200 | 7.218 |
| 150 x 8 | 2.850 | 9.400 |
| 150 x 10 | 3.596 | 11.798 |
| 150 x 12 | 4.297 | 14.098 |
| 150 x 16 | 5.729 | 18.797 |
| 150 x 20 | 7.192 | 23.597 |
| 150 x 25 | 8.991 | 29.499 |
| 150 x 32 | 11.490 | 37.699 |
| 150 x 40 | 14.355 | 47.099 |
